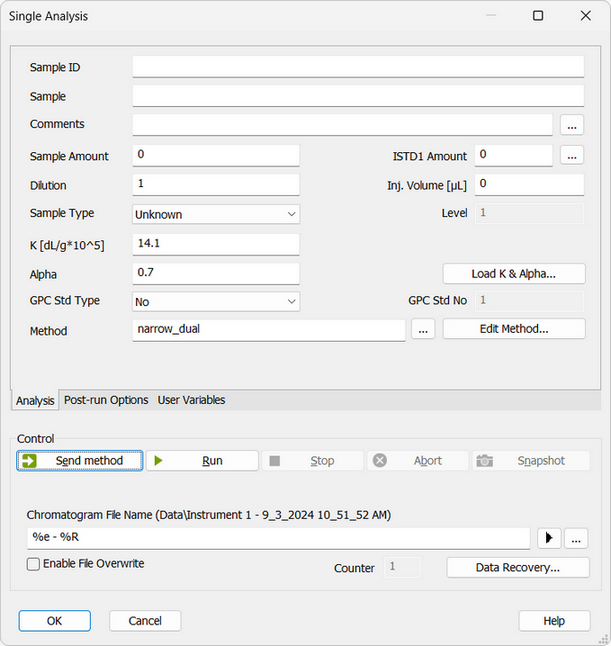

Single Analysis dialog

The new fields named K and Alpha and a new Load K & Alpha button are present in the Single Analysis dialog. The K and Alpha fields enable to enter the Mark-Houwink parameters used for universal calibrations. The default values 14.1 and 0.7 are valid for linear polystyrene in tetrahydrofurane at 25 °C. The Load K & Alpha button enables entering those values from user editable table in the K & Alpha dialog.

Additionally fields GPC Std Type and GPC Std No are present. They serve for automated recalibration similarly to the standard Sample Type field. Refer to Sequence window for full description.

If you import chromatograms using the File - Import Chromatogram… menu in the Chromatogram window, values entered in the K and Alpha fields will be saved in the imported chromatograms.

Single Analysis
