Graph Properties - Gradient & Auxiliary Signals tab

Tabs: Graph - Axes Appearance - Time Axis - Signal Axis - Signals - Gradient & Auxiliary Signals - Auxiliary Signal Details - MS Spectra

Sets the display of gradient graph on directly controlled HPLC configurations. Except for the Use User Options parameter, the tab is identical to the Gradient & Auxiliary Signals tab of the User Options dialog described in the chapter "Gradient & Auxiliary Signals tab ".

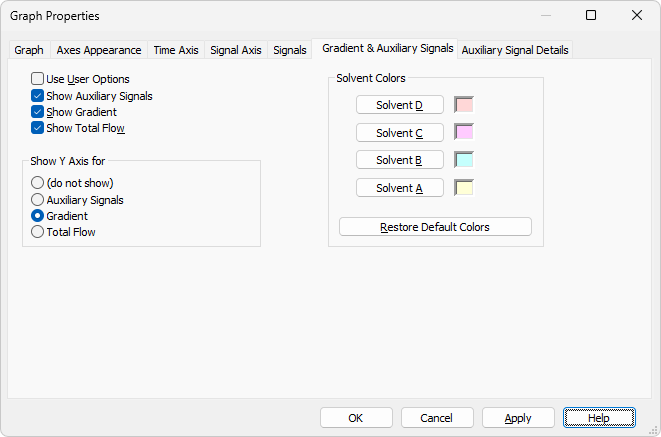

Graph Properties - Gradient

Use User Options

All parameter settings in the left column will be taken from the global setting in the User Options - Gradient dialog, accessible from the Instrument window using the View - Options… command.
