AS with Clarity control module - Active Sequence + digital acquisition

When using optional AS Control module in combination with digital acquisition detectors (e.g., the Agilent 6890 module), the connection should be as follows.

All communication with Clarity is performed through separate data cables (usually a serial cable connected to a COM port). The autosampler initiates the injection after Clarity receives the command sent through a serial cable ①. After the injection, the autosampler will close the INJECTION contact ② and thus the command to start the temperature gradient program will be given ③ . At the same time, the chromatograph will send the command ④ through a serial cable to start acquisition ⑤.

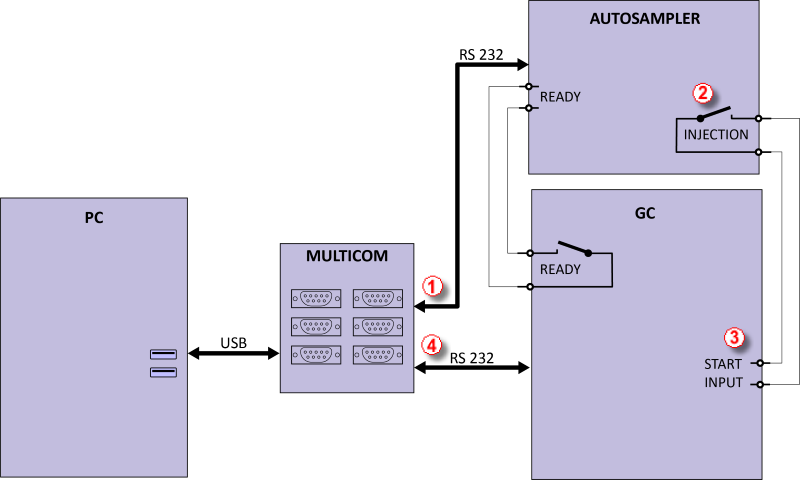

Wiring of the autosampler with AS Control module and digital acquisition

The start output for specific autosamplers can be set in the bottom-right corner of the System Configuration dialog, see Fig "System Configuration". Refer to the corresponding Clarity Control manual for the wiring to your instruments.
